Grand Seiko · Spring Drive
Spring Drive Chronograph Titanium / Ceramic / Blue / Bracelet / Black Ceramics Collection
Case
Diameter
46.40 mm
Height
16.20 mm
Material
Titanium / Ceramic
Glass
Sapphire
Caseback
Open
Water Resistance
100.00 m
Bezel
Tachymeter
Dial
Color
Blue
Indexes
Stick / Dot
Hands
Dauphine
Finish
Sunburst
Shape
Round
Other
Limited Edition
500 pieces
Gender
M
Production
2017–present
Movement Specs
Caliber
9R96
Grand Seiko in-house
Caliber Brand
Grand Seiko
Type
Quartz
Power Reserve
192 h
8 days
Jewels
50
Complications
Chronograph, Column wheel, Date, Hours, Minutes, Seconds, Additional 24 Hour Hand (adjustable), Power Reserve Indicator
About the Movement
Caliber 9R96 is a self-winding movement with column-wheel chronograph and GMT function, based on Seiko's Spring Drive technology. As in conventional mechanical watches, the sole power source of Spring Drive is a mainspring that can be wound by the motion of an oscillating weight or by winding the crown. And just as in mechanical watches, the mainspring drives a series of gears that rotate the hour, minute and second hands. A rotor, connected to the end of these gears, generate a small electrical charge that activates an electronic circuit and quartz oscillator.
About the Family
Spring Drive is Grand Seiko's most original contribution to watchmaking — a movement technology that exists nowhere else in the industry. Invented by Yoshikazu Akahane and developed over 28 years before its 1999 debut, Spring Drive combines a traditional mainspring with an electronic regulator: the mainspring drives the gear train, but instead of a mechanical escapement, a tri-synchro regulator converts the mechanical energy into electrical energy to drive a quartz oscillator that governs the speed of the hands. The result is a perfectly smooth, gliding seconds hand — no tick, no sweep — and accuracy of ±1 second per day, an order of magnitude better than mechanical movements. It is simultaneously mechanical and electronic, and entirely neither.
About this reference

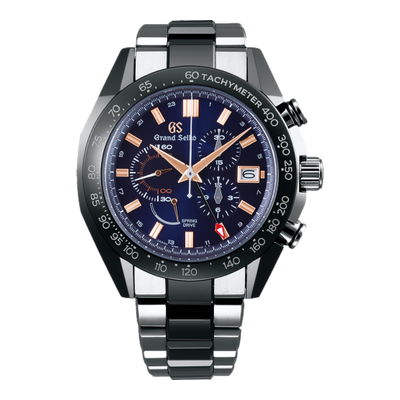

The Grand Seiko SBGC219 is a limited edition of 500 pieces created in the context of Seiko's Black Ceramics Collection. It features a case in titanium & ceramic and a matching bracelet, while the dial is done in 'Grand Seiko Blue'. The hands and indexes are 18k pink gold.
